Frequency Multipliers (WR and D Series)

Description

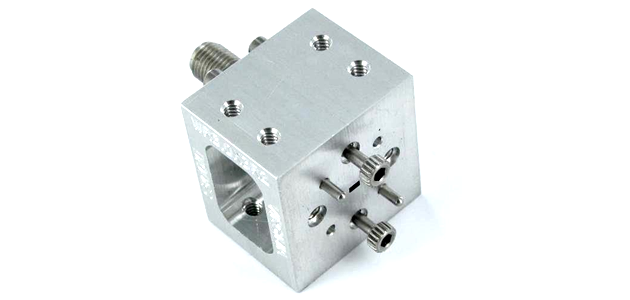

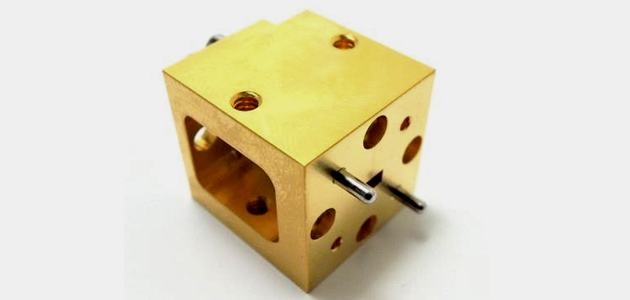

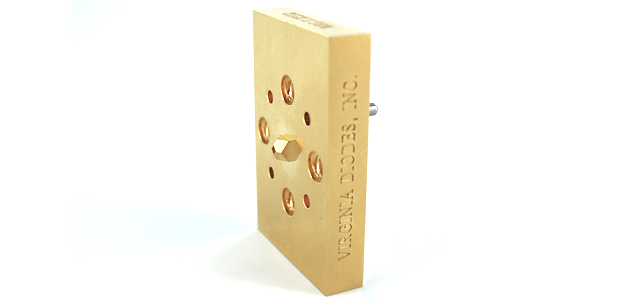

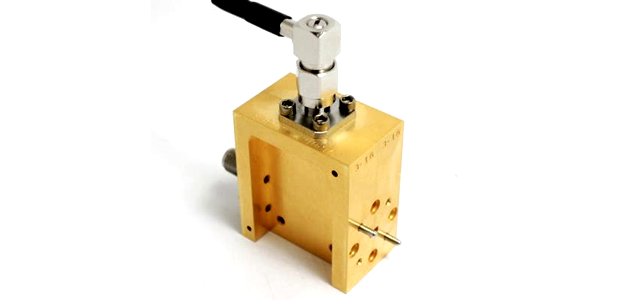

VDI offers a broad range of millimeter-wave varistor mode, passive frequency multipliers based on planar GaAs Schottky diode technology. Frequency doublers and triplers are used to extend the frequency coverage of microwave and millimeter-wave sources.

Broadband Multipliers
VDI broadband doublers and triplers have high efficiency (up to ~4%) across full waveguide bands. VDI offers broadband frequency doublers from WR-15 (50-75 GHz) to WR-1.9 (400-600 GHz). VDI offers broadband frequency triplers from WR-15 (50-75 GHz) to WR-0.34 (2200-3300 GHz).

High Power Multipliers

VDI high power doublers offer high efficiency (up to ~40%) across a narrowband (~5-10% fractional 3 dB bandwidth). VDI offers high power doublers from ~50 GHz to ~500 GHz. High power doublers can be optimized for specific applications.



Other Frequency Multipliers
Alternative frequency multipliers that are optimized for specific applications may be available upon request. Contact VDI for more information.



Frequency (GHz)WRWide-Band Doublers (x2)Wide-Band Triplers (x3)
50-75WR-15WR15x2WR15x3
60-90WR-12WR12x2WR12x3
75-110WR-10WR10x2WR10x3
82-125WR-9.0 WR9.0x3
90-140WR-8WR8.0x2WR8.0x3
110-170WR-6.5WR6.5×2WR6.5×3
140-220WR-5.1WR5.1×2WR5.1×3
170-260WR-4.3WR4.3×2WR4.3×3
220-330WR-3.4WR3.4×2WR3.4×3
260-400WR-2.8WR2.8×2WR2.8×3
330-500WR-2.2WR2.2×2WR2.2×3
400-600WR-1.9WR1.9×2WR1.9×3
500-750WR-1.5 WR1.5×3
600-900WR-1.2 WR1.2×3
750-1100WR-1.0 WR1.0x3
1100-1700WR-0.65 WR0.65×3
1400-2200WR-0.51 WR0.51×3


See WR for additional details on waveguide band designations.

Contact VDI  today for additional information.

The D-series and T-series multipliers are VDI’s line of high-power / narrow-band varactor doublers and triplers. These multipliers range from ~50GHz to 700GHz and offer various options for 3dB bandwidth, peak efficiency, and RF input power rating. VDI continues to make developments to its varactor multiplier products. Please contact VDI for multiplier recommendations based upon your frequency and power requirements.
   Specifications for Varactor Doublers*
 VDI Part # RF Output
Frequency
(GHz)†		Peak Efficiency
(%)††

Typical 3dB
Bandwidth (%)†

 RF Input
Power Range
(mW)††



Output Flange

Input Flange
D4842 – 523314300 – 2250 WR-19 UG-383/U 2.9mm(f)
D52-W48 – 572514300 – 1950WR-19 UG-383/U2.9mm(f)
D52-N48 – 58328300 – 1950WR-19 UG-383/U2.9mm(f)
D5848 – 653214450 – 1800WR-15 UG-385/U2.9mm(f)
D6251 – 673314400 – 1800WR-15 UG-385/U2.9mm(f)
D7264 – 7928 – 3014400 – 1500WR-12 UG-387/U2.9mm(f)
D8473 – 9028 – 3014250 – 1000WR-10 UG-387/U-MWR-22 UG-383/U
D9086 – 963010200 – 900WR-10 UG-387/U-MWR-19 UG-383/U
D10292 – 1092714200 – 700WR-10 UG-387/U-MWR-19 UG-383/U
 D108 92 – 12430 10250 – 1000WR-8.0 UG-387/U-MWR-15 UG-385/U
D110104 – 11825 – 308200 – 900WR-8.0 UG-387/U-MWR-15 UG-385/U
 D123 110 – 13224 – 288150 – 700WR-6.5 UG-387/U-MWR-15 UG-385/U
D153135 – 15724 – 288150 – 650WR-6.5 UG-387/U-MWR-12 UG-387/U
D175157 – 192 25 – 308120 – 550WR-5.1 UG-387/U-MWR-10 UG-387/U-M
D210195 – 22825 8100 – 500WR-4.3 UG-387/U-MWR-8.0 UG-387/U-M
D252225 – 278 20 – 257100 – 450WR-3.4 UG-387/U-MWR-6.5 UG-387/U-M
D315280 – 33818 – 23 6.5120 – 220WR-2.8 UG-387/U-MWR-5.1 UG-387/U-M
D330280 – 34020 – 251020 – 190WR-2.8 UG-387/U-MWR-5.1 UG-387/U-M
D370330 – 420 18615 – 110WR-2.2 UG-387/U-MWR-4.3 UG-387/U-M
D450400 – 470 13630 – 120WR-2.2 UG-387/U-MWR-4.3 UG-387/U-M
D530440 – 5909 – 135 10 – 80WR-1.9 UG-387/U-MWR-3.4 UG-387/U-M
D650580 – 6809 – 135 8 – 75WM-380 UG-387/U-MWR-3.4 UG-387/U-M
†The RF Output Frequency range indicates the range over which the multiplier can be tuned. The lower and upper limits indicate the minimum
and maximum 3dB bandwidth limits of the multiplier respectively.
††The multiplier can be configured to operate at an RF input power level within the wide RF input power range specified above. However, the
multiplier is expected to operate approximately ±1dB centered around the RF input power level specified, not exceeding the maximum or
minimum RF input power range listed above. Different biases may be required to achieve optimal performance across the full input power range
specified above. Efficiency and 3dB bandwidth may be reduced at low RF input power levels.
RF Input Power Damage Limit is expected to be approximately +2dB above the specified RF input power level specified, not exceeding
the maximum RF input power listed above. See individualized datasheet for damage limit.
*This table is not a comprehensive list of all the varactor multipliers VDI offers. VDI may offer a different multiplier that is better suited for your
application.



   Specifications for Varactor Triplers*
 VDI Part # RF Output
Frequency
(GHz)†		Peak Efficiency
(%)††

Typical 3dB
Bandwidth (%)†

RF Input
Power Range
(mW)††



Output Flange

Input Flange
T9389 – 9717 – 20535 – 185WR-10 UG-387/U-M 2.9mm(f)
T108103 – 11012 – 15535 – 185WR-8.0 UG-387/U-M2.9mm(f)
T220208 – 22510 – 13550 – 150WR-4.0 UG-387/U-MWR-12.8 UG-387/U-M
T228223 – 23310 – 12575 – 170WR-4.3 UG-387/U-MWR-12.2 UG-387/U-M
T282276 – 2908 – 10475 – 140WR-3.4 UG-387/U-MWR-10 UG-387/U-M
T321305 – 3357 – 9420 – 55WR-2.8 UG-387/U-MWR-8.0 UG-387/U-M
T438432 – 4448 – 9415 – 55WR-2.0 UG-387/U-M WR-6.5 UG-387/U-M

†The RF Output Frequency range indicates the range over which the multiplier can be tuned. The lower and upper limits indicate the minimum
and maximum 3dB bandwidth limits of the multiplier respectively.
††The multiplier can be configured to operate at an RF input power level within the wide RF input power range specified above. However, the
multiplier is expected to operate approximately ±1dB centered around the RF input power level specified, not exceeding the maximum
or minimum RF input power range listed above. Different biases may be required to achieve optimal performance across the full input power range
specified above. Efficiency and 3dB bandwidth may be reduced at low RF input power levels.
RF Input Power Damage Limit is expected to be approximately +2dB above the specified RF input power level specified, not exceeding
the maximum RF input power listed above. See individualized datasheet for damage limit.
*This table is not a comprehensive list of all the varactor multipliers VDI offers. VDI may offer a different multiplier that is better suited for your
application.
